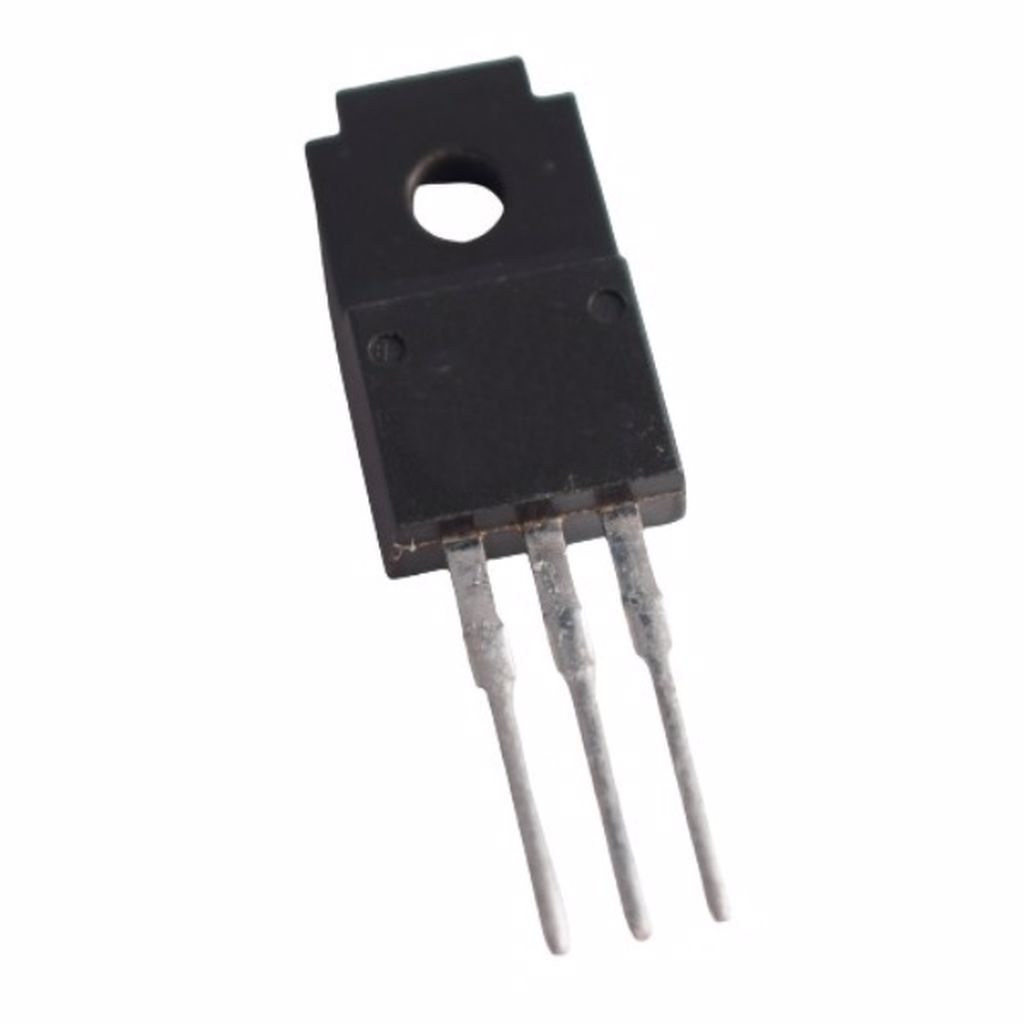

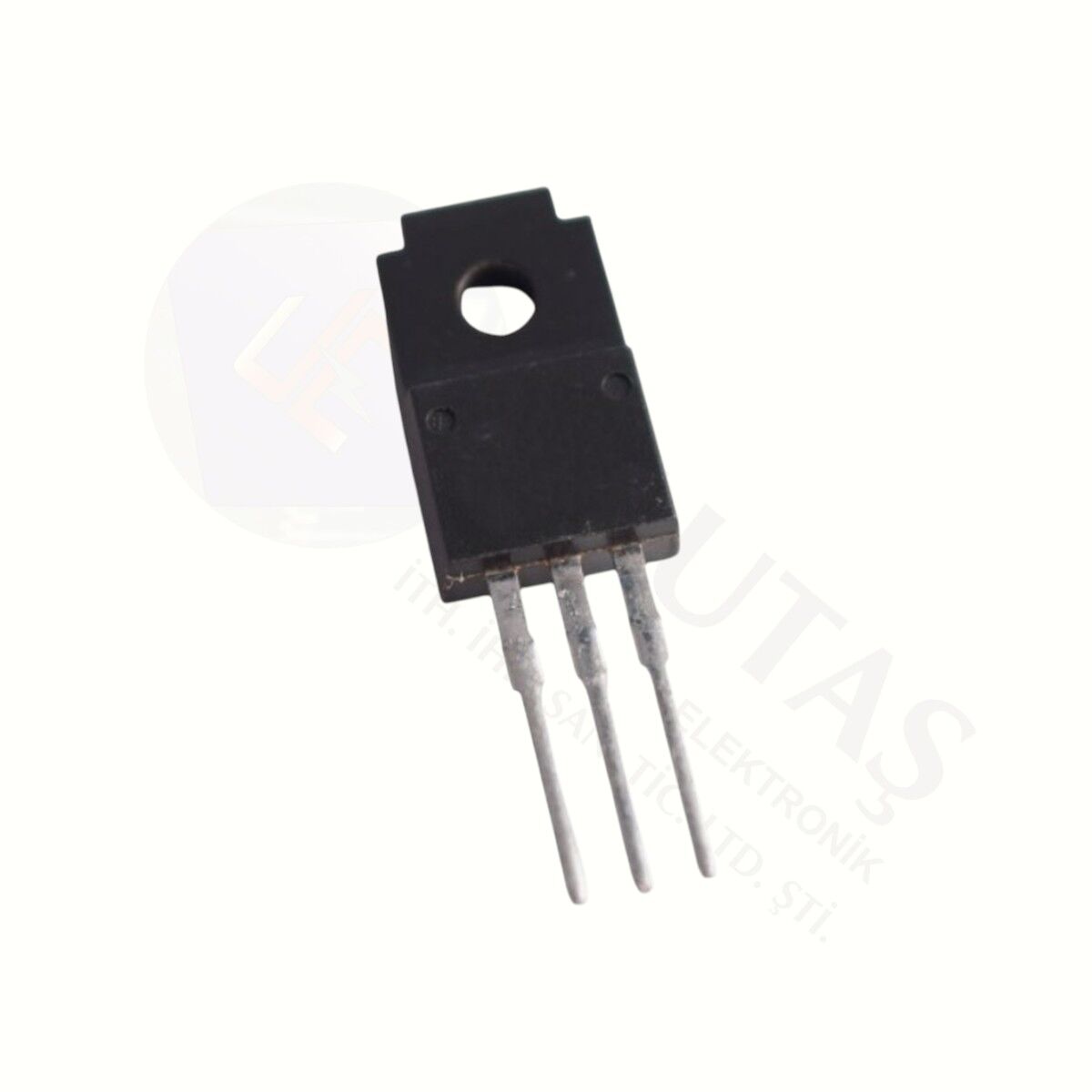

2sa1306B TO-220F 1.5A 160V 20W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
8 Adet
Fiyat
1,40 USD + KDV
*5,39 TL den başlayan taksitlerle!
57,98 TL
2sa1306B TO-220F 1.5A 160V 20W PNP TRANSISTOR
2SA1306
Type Designator: 2SA1306
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 20 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 160 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 70
