2SA1213-Y - (NY) SOT-89 2A 50V 0.5W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
960 Adet
Fiyat
0,45 USD + KDV
*1,73 TL den başlayan taksitlerle!
18,57 TL
2SA1213-Y - (NY) SOT-89 2A 50V 0.5W PNP TRANSISTOR
2SA1213-Y
Type Designator: 2SA1213-Y
SMD Transistor Code: NY
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 40 pF
Forward Current Transfer Ratio (hFE), MIN: 70

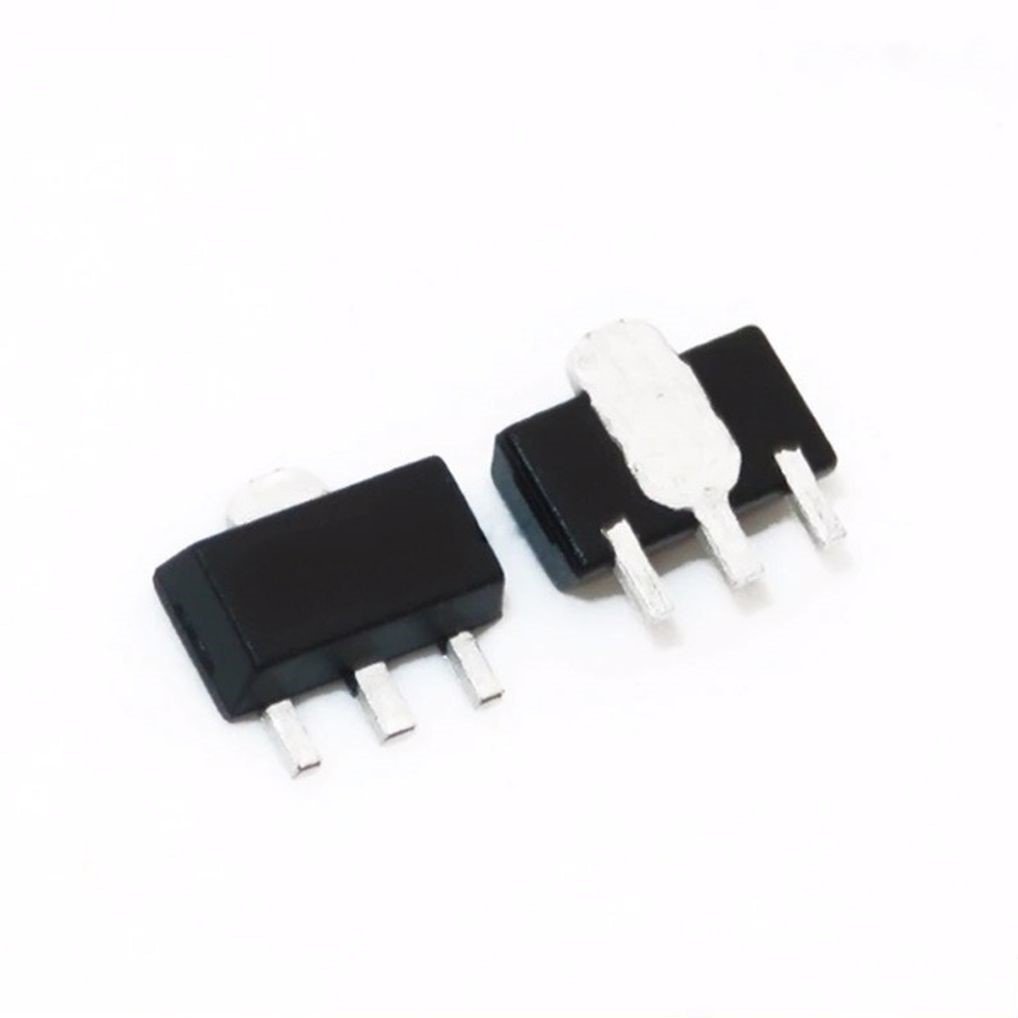

Package: SOT89
