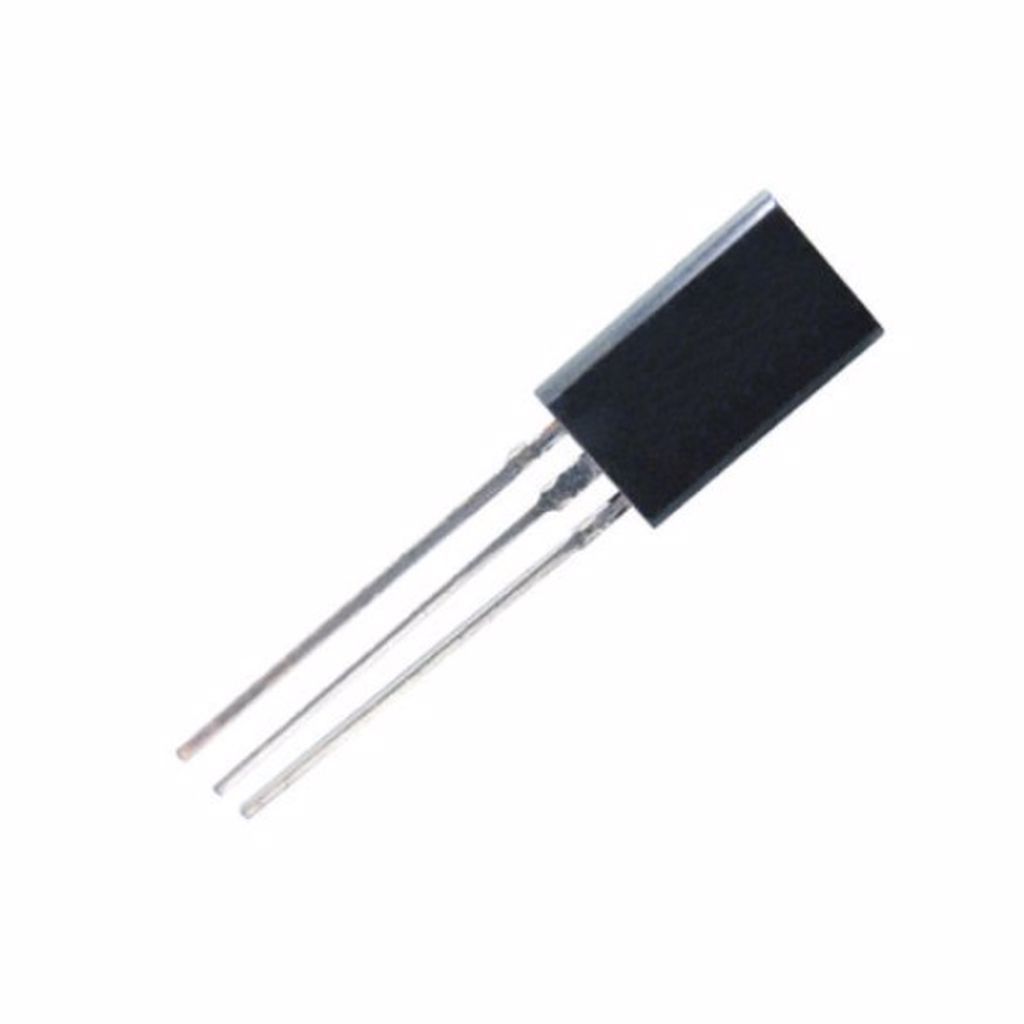

2SA1208 TO-92L 70MA 180V 0.9W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,21 USD + KDV
*0,81 TL den başlayan taksitlerle!
8,70 TL
2SA1208 TO-92L 70MA 180V 0.9W PNP TRANSISTOR
2SA1208
Type Designator: 2SA1208
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 180 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.07 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 2.5 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO92
