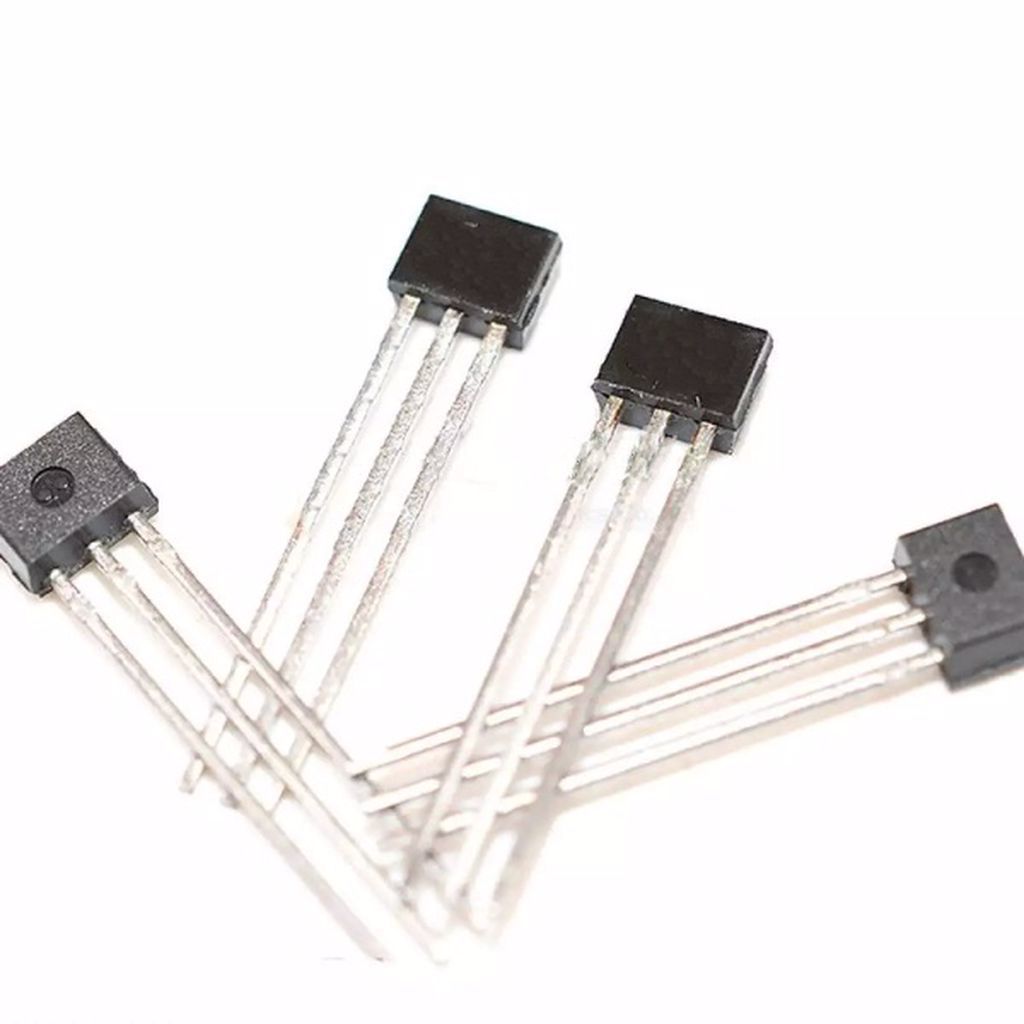

2SA114 - (DTA114ESA, A114ES) TO-92S 0.1A 50V 0.3W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,18 USD + KDV
*0,69 TL den başlayan taksitlerle!
7,43 TL
2SA114 - (DTA114ESA, A114ES) TO-92S 0.1A 50V 0.3W PNP TRANSISTOR
DTA114ESA
Type Designator: DTA114ESA
SMD Transistor Code: A114ES
Material of Transistor: Si
Polarity: Pre-Biased-PNP
Built in Bias Resistor R1 = 10 kOhm
Built in Bias Resistor R2 = 10 kOhm
Typical Resistor Ratio R1/R2 = 1
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Package: SC-72
