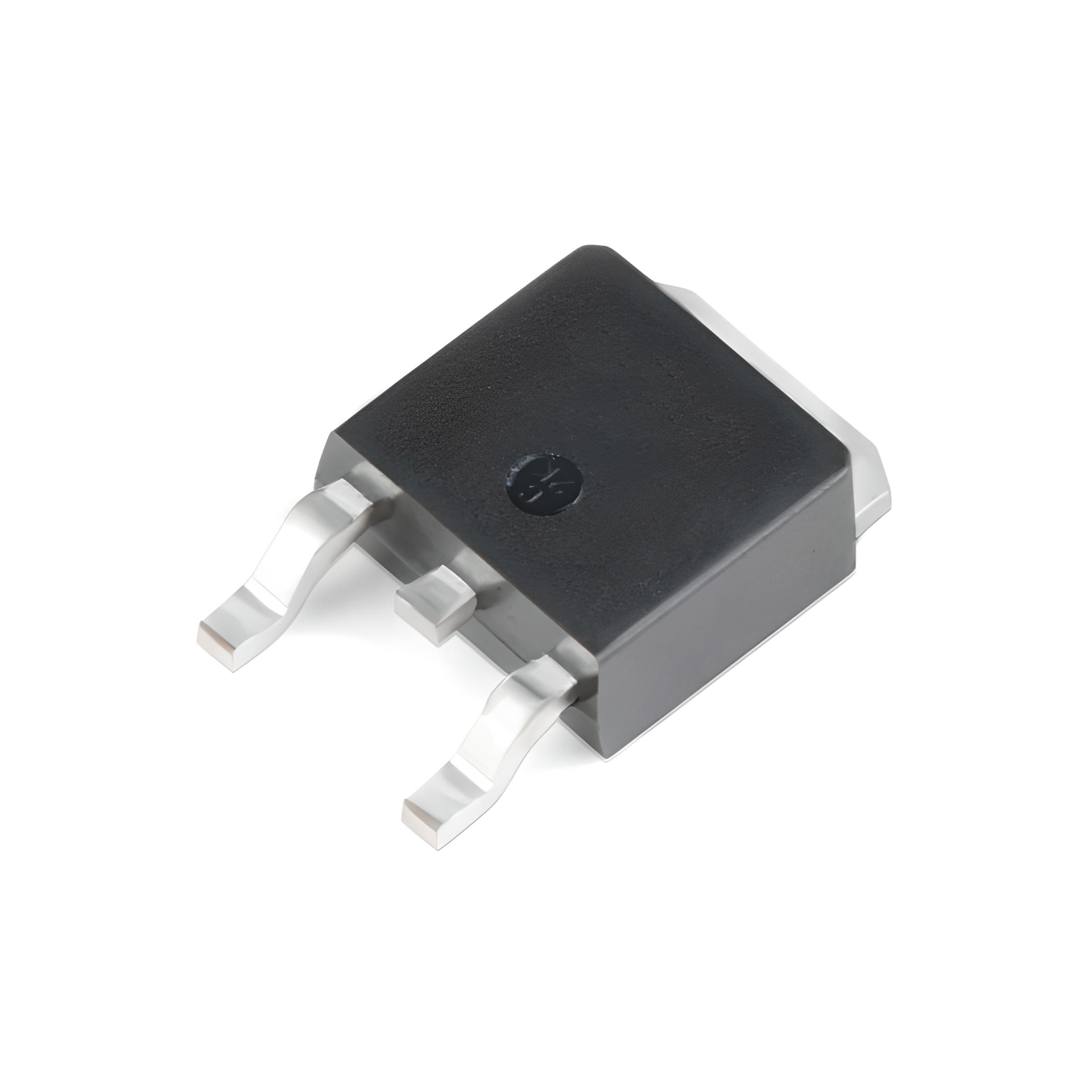

2N65 TO-252 2A 650V 60W 3.8Ω N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
31 Adet
Fiyat
0,75 USD + KDV
*2,89 TL den başlayan taksitlerle!
31,06 TL
2N65 TO-252 2A 650V 60W 3.8Ω N-CHANNEL MOSFET
2N65 TO252
Type Designator: 2N65-TO252
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 60 W
Maximum Drain-Source Voltage |Vds|: 650 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 15(max) nC
Rise Time (tr): 20 nS
Drain-Source Capacitance (Cd): 40 pF
Maximum Drain-Source On-State Resistance (Rds): 3.8(typ) Ohm
Package: TO252
