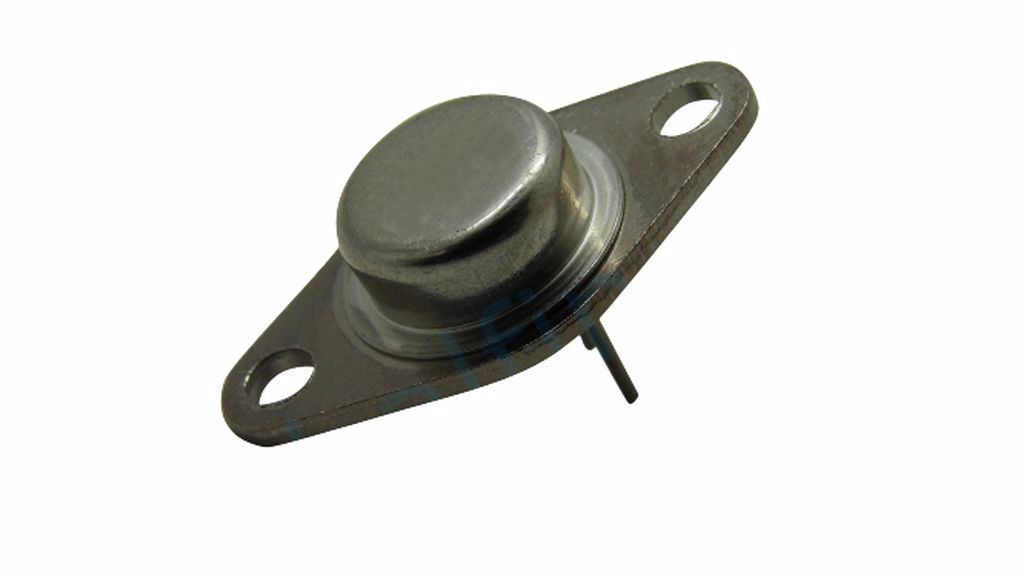

2N3054 TO-66 90V 4A NPN TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
2,20 USD + KDV
*8,44 TL den başlayan taksitlerle!
90,80 TL
2N3054
Type Designator: 2N3054
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 0.8 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO66
