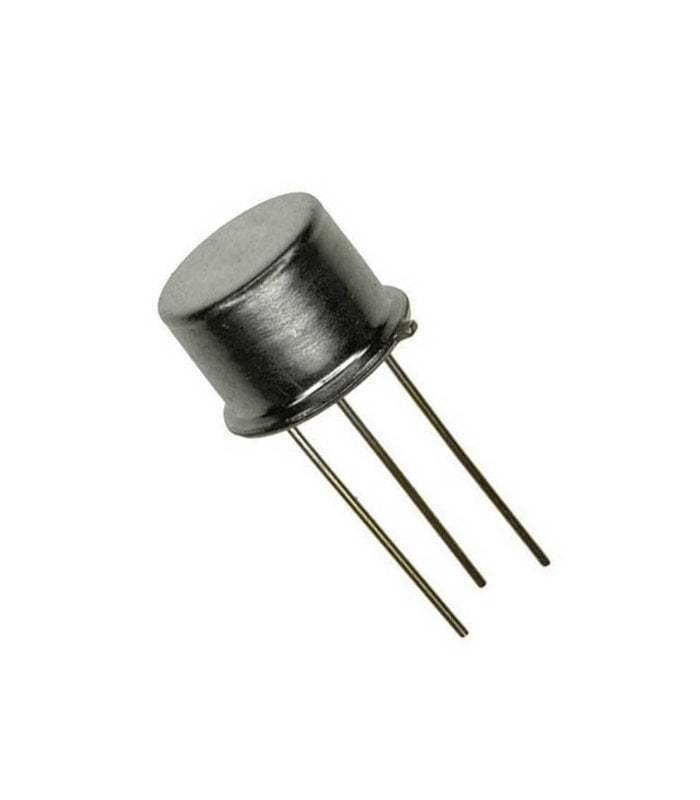

2N2219A TO-39 0.8A 75V 0.8W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
84 Adet
Fiyat
1,30 USD + KDV
*4,99 TL den başlayan taksitlerle!
53,66 TL
2N2219A
Type Designator: 2N2219A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.8 W
Maximum Collector-Base Voltage |Vcb|: 75 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.8 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 8 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO39
